Introduction

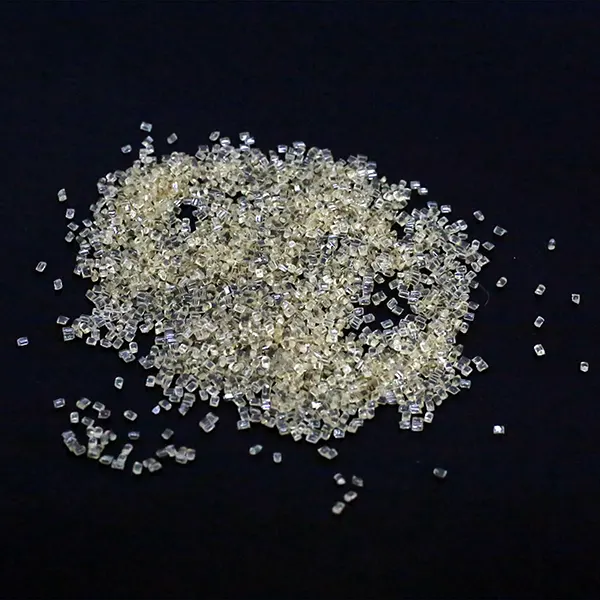

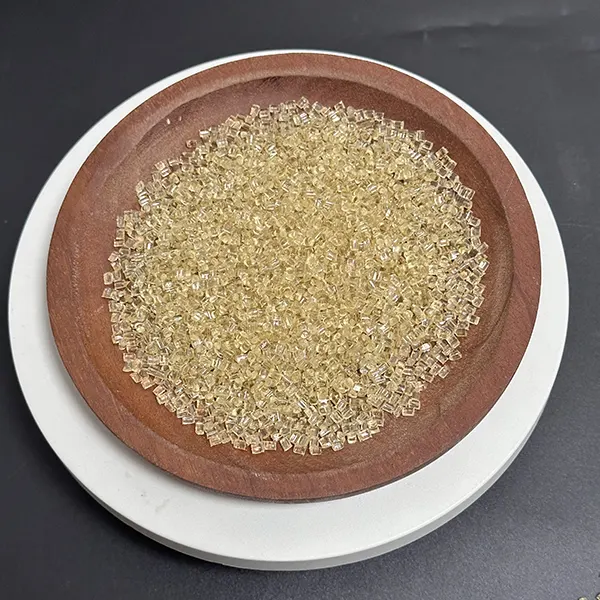

Radel® R-5000 NT is a transparent polyphenylsulfone (PPSU) that is suitable for a wide variety of injection molding and extrusion applications. This resin also offers high deflection temperatures and outstanding resistance to environmental stress cracking. Radel® polymers are inherently flame retardant, provide excellent thermal stability and possess good electrical properties. This material is available in pellet form that can be used with standard plastic processing equipment. The material pellets are clear/transparent in appearance.
Main Grades
| Physical | Test Method | Data | Unit |
| Density | ASTM D792 | 1.29 | g/cm3 |
Shrinkage rate flow 3.2mm | ASTM D955 | 0.70 | % |
| Water absorption rate 24hr | ASTM D570 | 0.37 | % |
| Water absorption balance | ASTM D570 | 1.1 | % |
| Melt Index 380℃ 5kg | ASTM D1238 | 14-20 | cm3/10min |
Features
Autoclave Sterilizable (1000 cycles) - 270°F (132°C) for 30 minutes/cycle
Flame Retardant Biocompatible
Radiation stable & sterilizable
E-Beam sterilizable
Agency Approvals
ISO 10993 Healthcare biocompatible
FAA FAR 25.853a
NSF STD 51
NSF STD 61 Tested at 82 °C (180 °F) (Commercial Hot)
Automotive Approvals
ASTM D6394 SP0312
Parameters
Minimum Order Quantity: | 25kg |
Price: | $1.8-$3.2 |
Packaging Details: | 25kg/bag |
Delivery Time: | 3-5 working days to departure port |
Payment Terms: | TT/LC |
Supply Ability: | 1000MT/Month |
