Introduction
Radel® R-5100 NT-15 is an opaque, general purpose polyphenylsulfone (PPSU) for injection molding applications. This resin also offers high deflection temperatures and outstanding resistance to environmental stress cracking. Radel® polymers are inherently flame retardant, provide excellent thermal stability and possess good electrical properties.

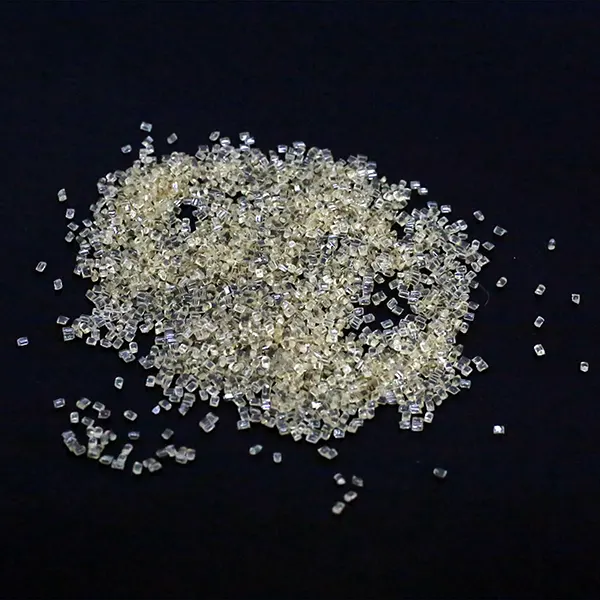

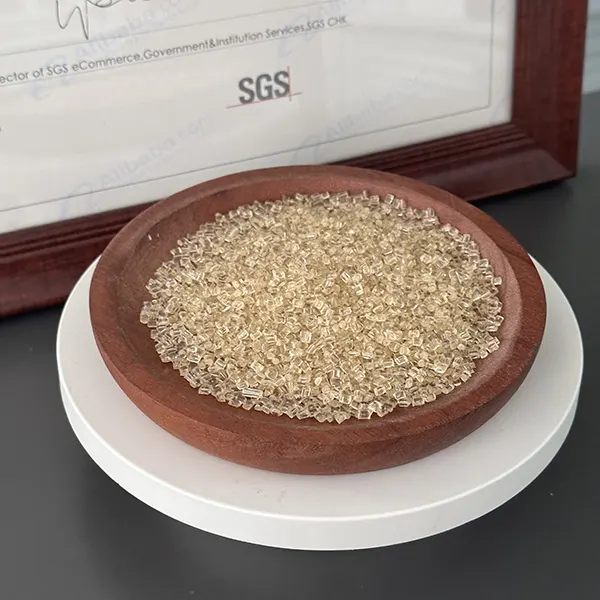

This material is available in pellet form that can be used with standard plastic processing equipment. The material pellets are naturally clear amber in appearance.
Main Grades
| Physical | Test Method | Data | Unit |
| Density | ASTM D792 | 1.30 | g/cm3 |
Shrinkage rate flow | ASTM D955 | 0.70 | % |
| Water absorption rate 24hr | ASTM D570 | 0.37 | % |
| Melt Index | ASTM D1238 | 14-20 | g/10min |
Features
Autoclave Sterilizable (1000 cycles)
Flame Retardant
Biocompatible
Radiation stable & sterilizable
E-Beam sterilizable
Agency Approvals
ISO 10993 Healthcare biocompatible
FAA FAR 25.853a
NSF STD-51
NSF STD-61- Tested at 82 °C (180 °F) (Commercial Hot).
Automotive Approvals
ASTM D6394 SP0312
Parameters
Minimum Order Quantity: | 25kg |
Price: | $1.8-$3.2 |
Packaging Details: | 25kg/bag |
Delivery Time: | 3-5 working days to departure port |
Payment Terms: | TT/LC |
Supply Ability: | 1000MT/Month |
